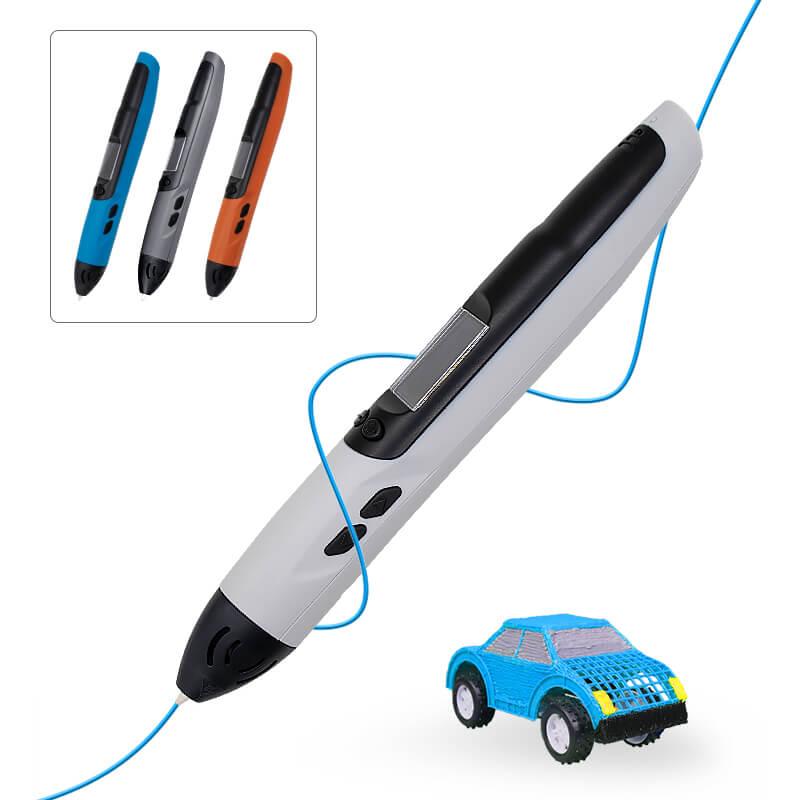

Professional-grade, lightweight design smart 3D printing pen
This is a new upgraded more compatible printing pen, Type-C power supply and external power supply Can be converted at any time, long-term use is not easy to burn.
Our smart 3D pen for creative professionals. Engineered for architects, artists, designers and engineers to test concepts, prototype and quickly illustrate in.
Item no.:
RP860APayment:
T/T, PayPal, Western UnionProduct origin:
ChinaColor:
Blue/Black/Orange/WhiteLead Time:
15-30 daysJER RP860A - Professional-grade, lightweight design smart 3D printing pen
1.Can be driven by power bank, no need connect to AC/DC adapter
2.Double click loading/unloading button to filling and remove filament automatically
3.Big size colorful OLED screen
4.OSD language: multi-language customized
5.Silicone housing
Specification
| Product Name | RP860A smart 3D pen for adults |
| Power supply | AC/DC adapter or power bank(5V 2A) |
| Display | Big size colorful OLED screen |
| Housing | Silicone |
| Nozzle | 0.7mm diameter ceramic |
| Printing material | 1.5~1.75mm ABS/PLA Filament |
| Print Range | unlimited |
| Temperature | 130-240℃ adjustable |
| Moulding speed | Adjustable |
| Input voltage | 100-240V, 50-60Hz |
| Colors | Blue/black/orange/white |
| Pen size | 176*26*26mm |
| Screen | 0.96“ colorful OLED screen |
| Pen Material | Dual molded plastic ( ABS and Silicone) |
| Pen net weight | 58g |
Product features
What makes this 3D pen your second-to-none choice?
1. Type-C power supply and external power supply at any time to convert, long-term use is not easy to burn, no need to worry about power problems;
2. OLED high-definition LCD display, precise temperature control micro-adjustment of the temperature, the change can also be controlled at any time when the temperature;
3. Independent power motor, using the internal concept of the clock motor, small size and long motor life, can work continuously for 108 hours;
4. Independent power motor, using the internal concept of the clock motor, small size and long motor life, can work continuously for 108 hours.
Tutorial
 |
Plug in power and press the filament loading button to heat up the pen until the screen shows it has reached the prescribed temperature. |
|
Long press or double click the filament loading button and insert the 1.75mm filament into the hole till it comes out of the nozzle, then it’s ready to draw. |
 |
|
|
Press the temperature + and - buttons to adjust the temperature, which ranges from 130℃ to 230℃. Switch between ABS/PLA mode by pressing the temperature + button and the unloading button at the same time. |
|
Press the speed + and - buttons to adjust speed at 6 levels (shown on the screen). |
 |
 |
Press the unloading button once to withdraw the filament when finishing drawing. |
Why choose us?
1.Profession. We have a mature R&D team that specializes in 3D pen design for more than 10 years;
2. Patented high quality accessories, which ensure the stability of our products.
3. OEM/ODM service helps to expand your brand.
4. ISO management system with strict quality control.
5. Global Certifications. CE, FCC, RoHS, EN71, KC, and EN 62115 certified for international compliance.
6. Warranty & Support. One-year warranty with responsive after-sales service.
